Leírás

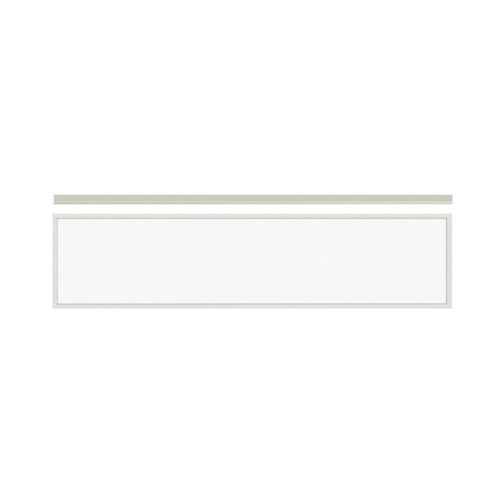

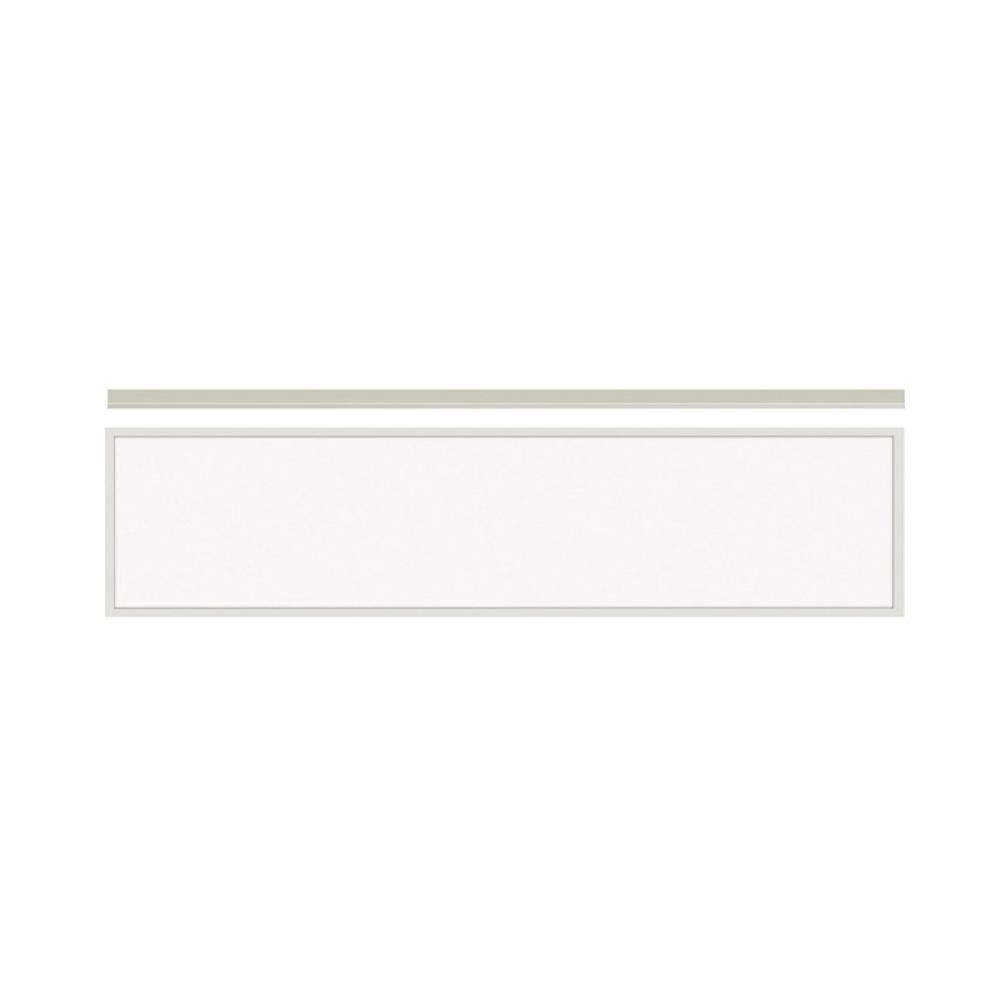

VENUS BC is a family of panel led light fixtures equiped with SAMSUNG LED sources in the backlight position. It can be installed in-grid, on the surface of the ceiling without additional frame or suspended with the pendant set PANELFIX-P (suspension set has to be ordered seperately). Housing of aluminum board electrostatically painted with sandblasted finishing in mat white. Diffuser of opal polystyrene with anti-yellow treatment with 120o beam angle Standard driver is included in the fixture. Dimming option, with PANELDIM, 3in1 dimming with TRIDONIC driver one4all (DALI-2 DT 6, DSI, switch DIM, corridor FUNCTION V2). Driver has to be ordered seperately. Emergency unit, EMUP 1, with 3 hours autonomy is available and has to be ordered seperately.
Paraméterek
| Garancia (év) | 2 |
| Teljesítmény (W) | 48W |
| Színhőmérséklet | 6500K (hideg fehér) |
| Fényhasznosítás (lm/W) | 110 |
| Sugárzási szög | 150 |
| Színvisszaadási index (CRI) | 83 |
| Teljesítmény tényező | 0.5 |
| IP védettség | IP20 |
| Élettartam | 50000 |
| HMéret | 1200X300 |
