Leírás

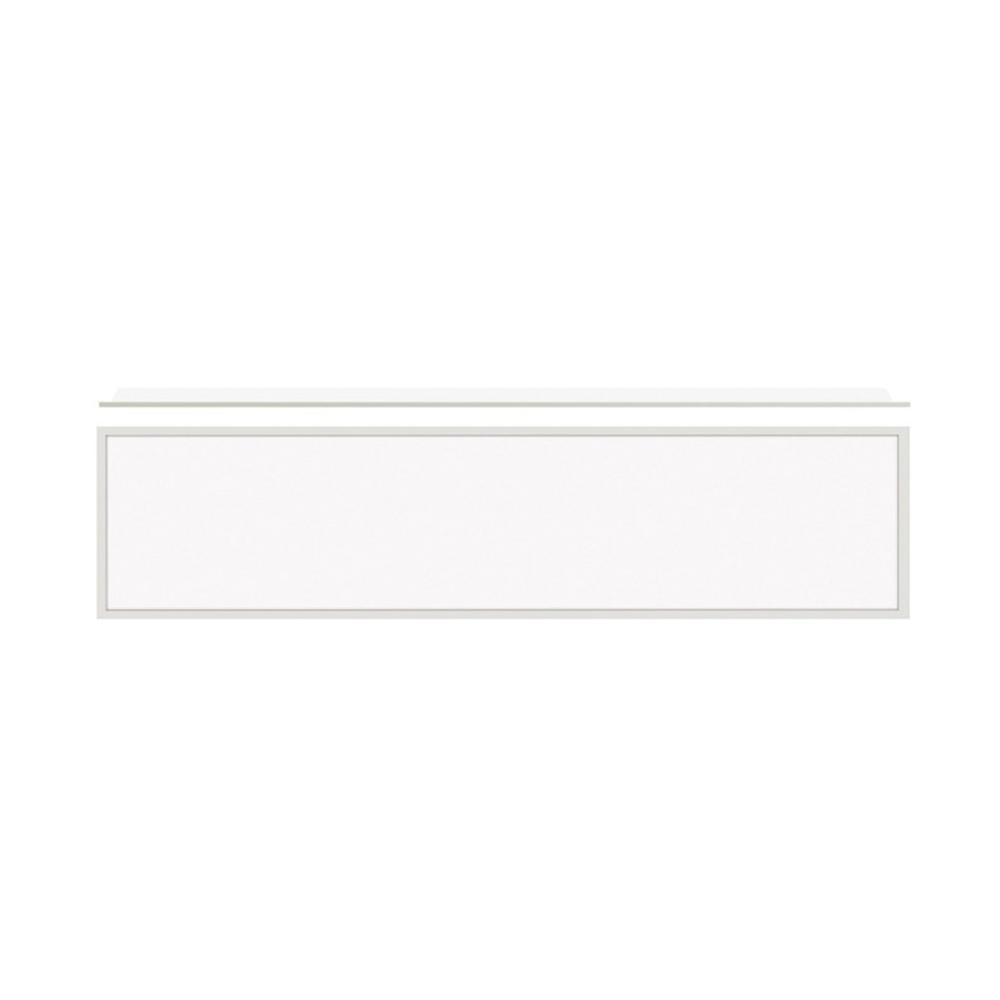

VENUS BC is a family of panel led light fixtures equiped with SAMSUNG LED sources in the backlight position. It is for in grid ceiling installation, can be installed on the surface of the ceiling with the frame PANELFIX-S (has to be ordered seperately). Also can be installed recessed on false ceilings with the set PANELFIX-C has to be ordered seperately). Housing of aluminum board electrostatically painted with sandblasted finishing in sand white. Diffuser of opal polystyrene with anti-yellow treatment with 120o beam angle Standard driver is included on the fixture. Dimming option, with PANELDIM, 3in1 dimming with TRIDONIC driver one4all (DALI-2 DT 6, DSI, switch DIM, corridor FUNCTION V2). Driver has to be ordered seperately. Emergency unit, EMUP 1, with 3 hours autonomy is available for VENUS-BC and has to be ordered seperately.
Paraméterek
| Garancia (év) | 2 |
| Teljesítmény (W) | 48W |
| Színhőmérséklet | 4000K (természetes fehér) |
| Fényhasznosítás (lm/W) | 108 |
| Sugárzási szög | 150 |
| Színvisszaadási index (CRI) | 83 |
| Teljesítmény tényező | 0.5 |
| IP védettség | IP20 |
| Élettartam | 50000 |
| HMéret | 1195X295 |
